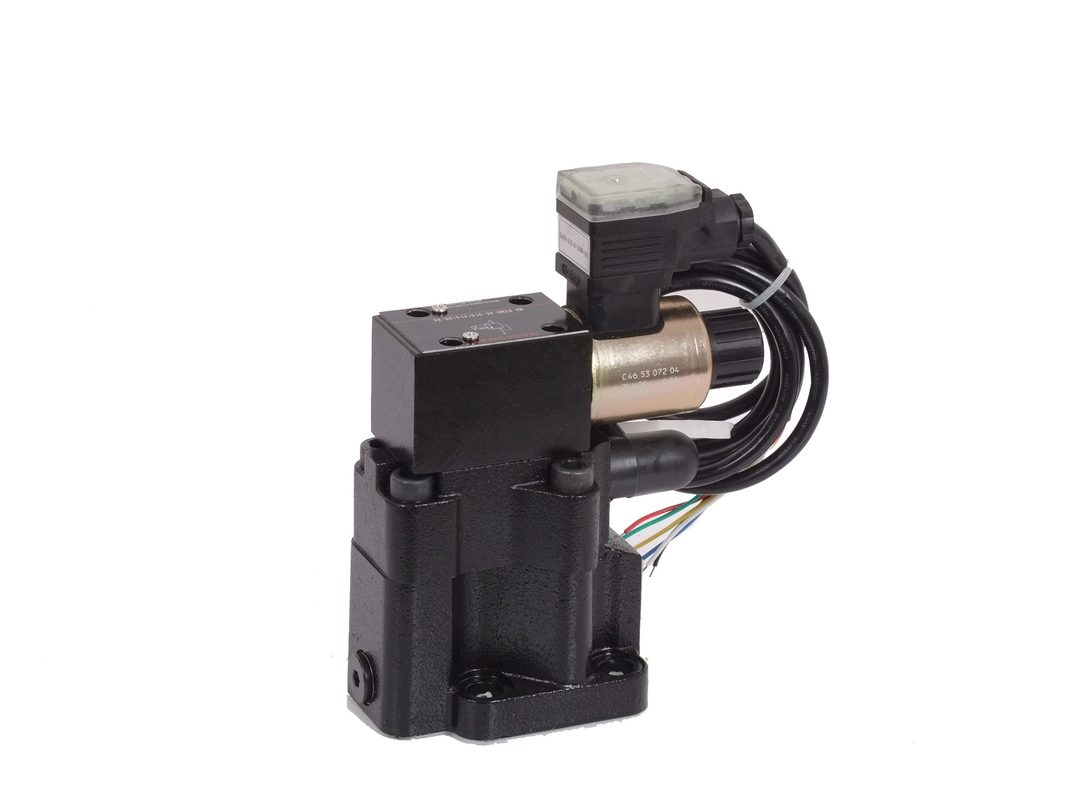

• Pressure 315 Bar Hydraulic Proportional Valve MA-AGMZO 32 flow 600L/min
Pressure 315 Bar Hydraulic Proportional Valve MA-AGMZO 32 flow 600L/min

Pressure 315 Bar Hydraulic Proportional Valve MA-AGMZO 32 flow 600L/min

Product Details:

Place of Origin: China
Brand Name: SJ HYD
Certification: ISO9001
Model Number: MA-AGMZO---AES---PS---10 /315/

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Latest price
Packaging Details: Standard package
Delivery Time: In stock
Payment Terms: T/T L/C
Supply Ability: 10000 pcs
Get Best Price Contact Now

Detail Information

Brand: SJ HYD Model: MA-AGMZO---AES---PS---10 /315/
Pressure: High Pressure Flow: 600L/Min
Port Size: 10,20,32 Condition: New
Type: Valves, Hydraulic Control Temperature: Normal Temperature
Power: Hydraulic Media: Oil
Structure: Control Material: Casting
Application: Hydraulic System Environment Temperature: -20-60
Place Of Origin: China Warranty: One Year
Package: Standard Package
High Light:

Proportional Relief Valve

,

hydraulic pressure relief valve

Product Description

Pressure 315 Bar Hydraulic Proportional Valve MA-AGMZO 32 flow 600L/min



HYDRAULIC CHARACTERISTICS( based on mineral oil ISO VG 46 at 50’c )



Hydraulic symbols





Valve model

AGMZO-A AGMZO-AE,AGMZO-AES



Size 10 20 32
Max regulated pressure 50, 100,210,315,350
Min.regulated pressure (Q=25 l/min) [bar] 7(10 for/350) 6(10 for/350) 5.5(10for/350)
Max pressure at port P [bar] 350
Max pressure at port T [bar] 210
Max flow [l/min] 200 400 600

Response time 0-100% step signal [ms]

(depending on installation)

120 135 150
Hysteresis [% of the max pressure] < 2
Linearity [% of the max pressure] < 3
Repeatability [% of the max pressure] < 2



Above performance data refer to valves coupled with Atos electronic drivers, see section 2
