MA-DHZO MA-DKZOR Hydraulic Proportional Valve 06 -10 flow 105L/MIN P=30bar
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Certification: | ISO9001 |
| Model Number: | MA-DHZO---AES---PS---0 7 1 - S 5/ * / * **/ * |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Latest price |
| Packaging Details: | Standard package |
| Delivery Time: | In stock |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10000 pcs |
|
Detail Information |
|||
| Brand: | SH Hydraulic | Model: | MA-DHZO---AES---PS---0 7 1 - S 5/ * / * **/ * |
|---|---|---|---|
| Certification: | ISO9001 | Size: | 06-10 |
| Flow: | 105L/Min | Operating Pressure: | 315bar |
| Standard Or Non: | Standard | Power: | Hydraulic |
| Media: | Oil | Structure: | Control |
| Msterial: | Casting | Pressure: | High Pressure |
| Temperature: | Normal Temperature | Place Of Origin: | China |
| Application: | Hydraulic System | Environment Temprature: | -20-60 |
| Condition: | New | Package: | Standard Packge |
| Warranty: | One Year | ||
| High Light: | Proportional Relief Valve,hydraulic pressure relief valve |
||
Product Description

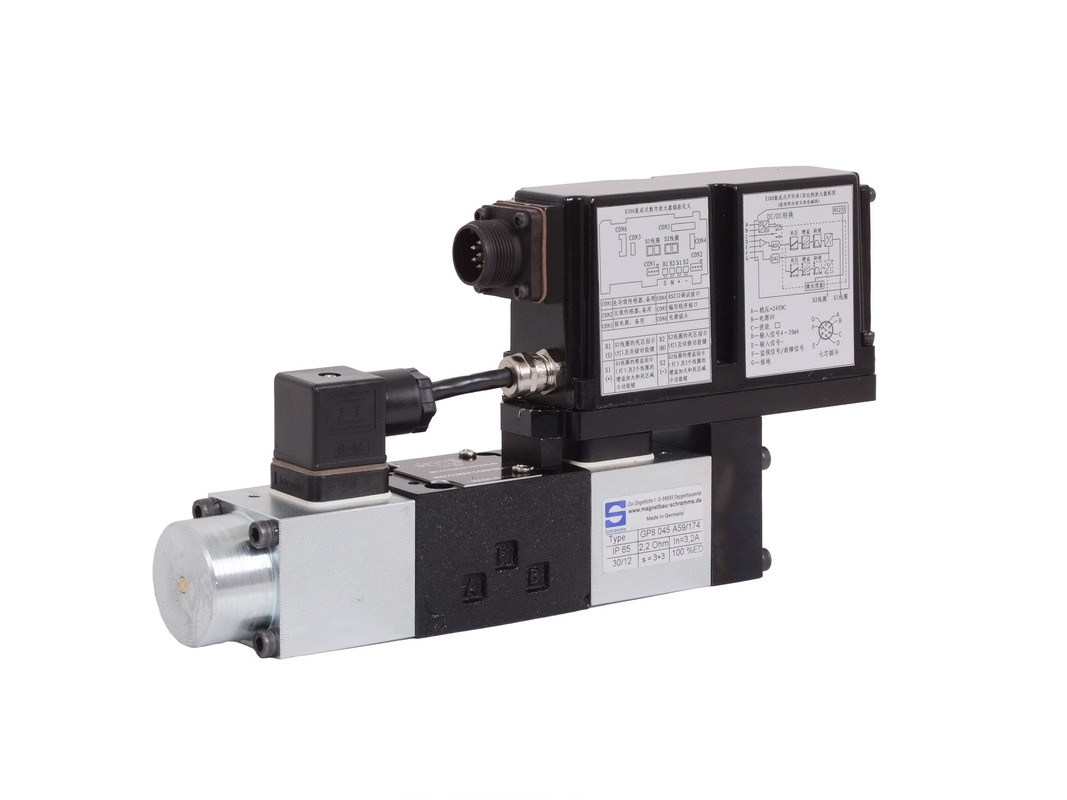

MA-DHZO MA-DKZOR Hydraulic Proportional Valve 06 -10 flow 105L/MIN P=30bar
HYDRAULIC CHARACTERISTICS( based on mineral oil ISO VG 46 at 50’c )
|
Hydraulic symbols
|
||||||||
| Valve model | DHZO | DKZOR | ||||||
| Spool overlapping | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | 1,3 | |
| Spool type and size(2) | L14 | L1 | S2 | S3,L3,D3 | S5,L5,D5 | S3,L3,D3 | S5,L5,D5 | |
| Pressure limits [bar] | Ports P,A,B=350; T=210(250 with external drain/Y | Ports P,A,B=315,T=210(250/Y) | ||||||
| Max flow (1) [l/min] | 1 | 4.5 | 8 | 17 | 28 | 45 | 60 | |
| At P= 10 bar (P-T) | ||||||||
| At P= 30 bar(P-T) | 2 | 8 | 14 | 30 | 50 | 80 | 105 | |
| At P=70bar (P-T) | 3 | 12 | 21 | 45 | 74 | 120 | 160 | |
| Response time (4) [ms] |
< 30 |
< 40 | ||||||
| Hysteresis [%] | < 5% | < 5% | ||||||
| Repeatability | + 1% | + 1% | ||||||
NOTES:
Above performance data refer to valves coupled with Atos electronic drivers, see section 2
The flow regulated by the directional proportional valves is not pressure compensated. Thus it is affected by the load variations. To keep costant the regulated flow under different load conditions, modular pressure compensators are available (see tab. D150)
For different P, the max flow is in accordance to the diagrams in sections 14.2 and 15.2
0-100% step signal
