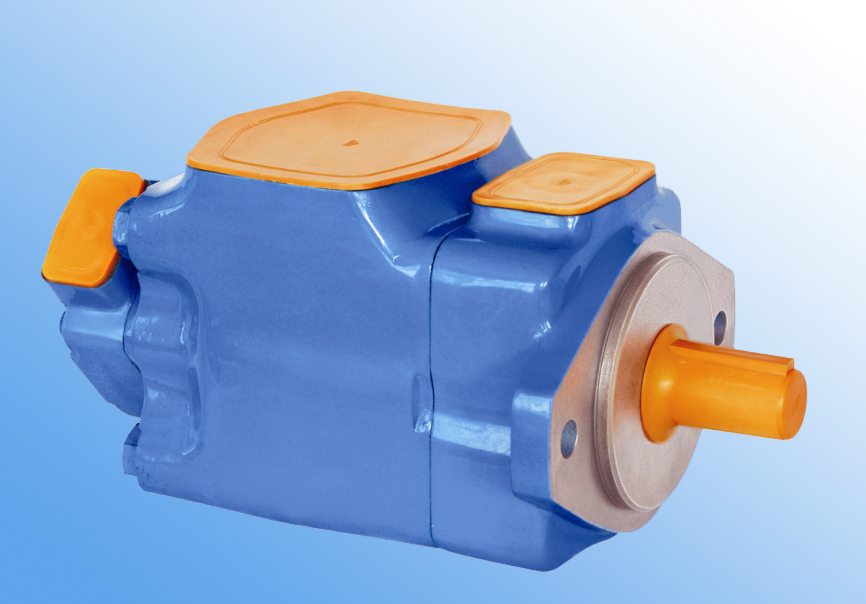

4520V 14 / 16 Rpm Tandem Hydraulic Vane Pump for Plastic Injection Machine
Product Details:
Place of Origin: | China |
Brand Name: | SJ Hydraulic |
Certification: | ISO9001 |
Model Number: | 2520V, 3520V,3525V,4520V,4525V,4535V |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pc |
---|---|
Packaging Details: | Carton |
Delivery Time: | 20days |
Payment Terms: | 30% deposit |
Supply Ability: | 1000 pcs per month |
Detail Information |
|||
High Light: | vickers vane pump,vane pump vicker |
---|
Product Description
4520V 14 / 16 Rpm Tandem Hydraulic Vane Pump for Plastic Injection Machine
Model | code | displacement (ml/r) | Using anti-wear Hydraulic oil or phosphate ester fluid | Using water glycol fluid | Using water-in-oil emulsions | lowest speed (rpm) | ||||
Max pressure (Mpa) | Max speed (rpm) | Max pressure (Mpa) | Max speed (rpm) | Max pressure (Mpa) | Max speed (rpm) | |||||
35**V **35V | 25 | 81 | 17.2 | 1800 | 7 | 1500 | 16 | 1200 | 600 | |
30 | 97 | |||||||||
35 | 112 | |||||||||
38 | 121 | |||||||||
**20V | 5 | 18 | 21 | 1800 | 7 | 1500 | 16 | 1200 | 600 | |
8 | 27 | |||||||||
9 | 30 | |||||||||
11 | 36 | |||||||||
12 | 40 | 16 | ||||||||
14 | 45 | 14 | 14 |
Applications:
Machine-toll, Plastic-injection Machine, Press-Die Casting Machine, Hydraulic System
Specifications:
2520V, 3520V, 3525V, 4520V, 4525V, 4535V etc.
Competitive Advantage: Good quality, Complete pump model, Competitive price, Best Service.
