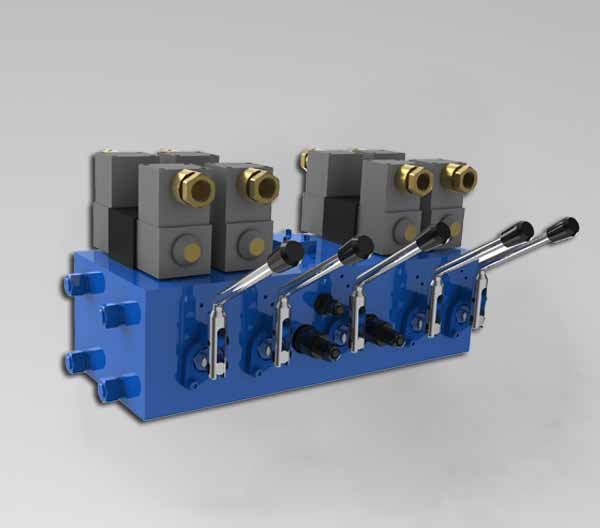

Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ Hydraulic |
| Certification: | ISO9001 |
| Model Number: | CMJF20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 20days |
| Payment Terms: | 30% deposit |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| High Light: | electro hydraulic valve,multi directional valve |
||
|---|---|---|---|
Product Description
Electro Hydraulic Directional Control Valve CMJF20 for 80 / 210 l / min
The maximum flow rate of the pump: 350l/min
The maximum flow rate of the actuator specifications: 80/210l/min (3/5)
Maximum pressure specifications: 420/400bar (3/5)
Manipulation modes: manual (handle)
Electro-hydraulic control (remote control)
Hydraulic control
Application: for several different load pressure actuator at the same time work
Such as heavy object lifting and hoisting devices
(Cranes, concrete pump trucks, logging equipment, high-altitude operation truck, etc.)
The valve is through the relative movement between the spool and valve body to change the connection on the valve body oil path off the valves. Multi-directional control valve is a valve as the main body by two or more combined valve. Depending on the job requirements, the safety relief valve, check valve and fill valve combination subsidiary valve. And compared to other types of valves, multi-directional control valve has a compact structure, small pressure loss, the slide valve movement resistance, a number of functions, long life, simple to manufacture.
