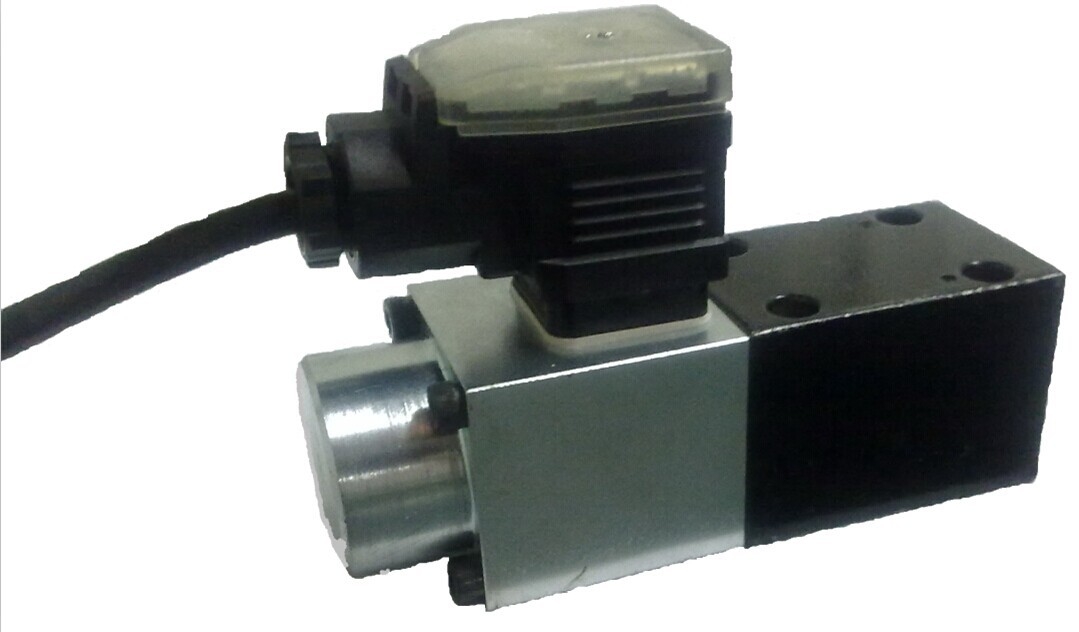

RZGO Hydraulic Proportional Valves MA-RZGO-TERS-AERS 10, 20 pressure 315bar
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Certification: | ISO9001 |
| Model Number: | MA-RZGO-TERS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 PC |
|---|---|
| Price: | Latest price |
| Packaging Details: | Standard package |
| Delivery Time: | In stock |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10000 pcs |
|
Detail Information |
|||
| Pressure: | High Pressure | Flow: | 2.5-40L/Min |
|---|---|---|---|
| Size: | 10-20 | Certification: | ISO9001 |
| Place Of Origin: | China | Working Media: | Oil |
| Type: | Reducing Valve | Application: | Hydraulic System |
| Standard Or Non: | Standard | Power: | Hydraulic |
| Structure: | Control | Meterial: | Casting |
| Temperature: | Normal Temperature | Operating Pressure: | 315bar |
| Environment Pressure: | -20-60 | Warranty: | One Year |
| Package: | Standard Package | Brand: | SJ Hydraulic |
| High Light: | Proportional Relief Valve,Proportional Directional Valve |
||
Product Description
RZGO Hydraulic Proportional Valves MA-RZGO-TERS-AERS 10, 20 pressure 315bar
RZGO are 3-way hydraulic proportional pressure
reducing valves, pilot operated with integral
or remote pressure transducer, which
provide pressure regulation proportional
to electronic reference signal.
They operate in association with electronic
drivers, see section , which supply
the proportional valve with proper current
to align valve regulation to the reference
signal supplied to the electronic driver
|
Hydraulic symbols
|
RZGO-TERS-033 RZGO-AERS-033 |
||||
| Valve model | RZGO-TERS, REZGO-AERS | ||||
| Max reduced pressure (Q=10 l/min) | 100 | 210 | 315 | 350 | |
| Max reduced pressure(Q=10l/min) [bar] | 1 or actual value at T port; (3 for/350) | ||||
| Max pressure at port P [bar] | Port P=350 bar, port T=210 BAR | ||||
| Minimum flow [l/min] | 2,5 | ||||
| Maximum flow [l/min] | 40 | ||||
|
Response time 0-100% step signal [ms] (depending on installation) |
<35 | ||||
| Hysteresis [% of the max pressure] | < 0,5 | ||||
| Linearity [% of the max pressure] | < 1 | ||||
| Repeatability [% of the max pressure] | < 0,5 | ||||
| Thermal drift | Zero point displacement<1% at T=40 °C | ||||
