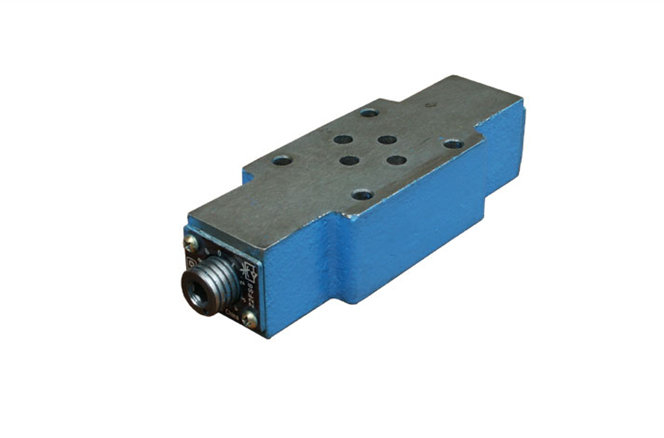

• Z2FS Double Throttle Check BOSCH Rexroth Hydraulic Valves
Z2FS Double Throttle Check BOSCH Rexroth Hydraulic Valves

Z2FS Double Throttle Check BOSCH Rexroth Hydraulic Valves

Product Details:

Place of Origin: China
Brand Name: SJ HYD
Certification: ISO9001
Model Number: Z2FS

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Packaging Details: Carton or wooden box
Delivery Time: One month
Payment Terms: T/T or L/C
Supply Ability: 1000 pcs per month
Get Best Price Contact Now

Detail Information

High Light:

hydraulic pressure relief valve

,

hydraulic safety valves

,

hydraulic relief valve

Product Description

Z2FS Double Throttle Check BOSCH Rexroth Hydraulic Valves



Specifications


Rexroth Throttle/check valve of Z2FS


Brand:BOSCH REXROTH


Type:Throttle valve check valve


Model:Z2FS


Rexroth Throttle/check valve of Z2FS


Double throttle/check valves serve to control the main flow or pilot flow rate in one direction and give free flow in the
opposite direction.



Valve type Z2FS6 is a double throttle/check adopted for vertical stack mounting ( sandwich plate design ).
Two symmetrically fitted in one block throttle/check valves limit the flow rate in one direction by means of an adjustable throttle pin and allow free flow through the check



Hydraulic fluid in line A flows to a user through the throttle position 1. At the same time, the fluid being under operating pressure reaches the spring loaded side 3 of the spool 4 via the line 2. The spool 4 is thus hold in the throttle position by both spring and pressure force.



Fluid returning from the user shifts the spool 5 to the right and permits the fluid to flow freely through the valve cartridge now acting as a check valve.



According to the mounting position of the valve, throttle effect can be achieved in the supply or drain.
