Manual 400S Hydraulic Steering Units with Six Integral Valves
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Model Number: | 400S, 550S, 510S, 531S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Packaging Details: | Carton or wooden box |
| Delivery Time: | 20days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 100 Pcs per month |
|
Detail Information |
|||
| High Light: | hydraulic steering system,steering control units,hydraulic power unit |
||
|---|---|---|---|
Product Description

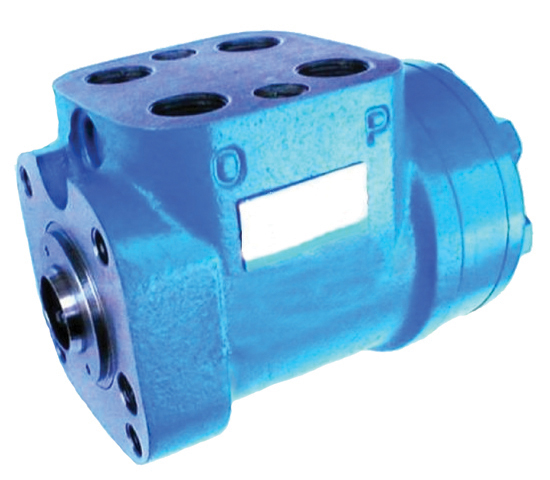

Manual 400S Hydraulic Steering Units with Six Integral Valves
Descrition:
Up to six integral valves are available for 400S series steering control unit .Included are : inlet relief valve , inlet check valve , cylinder port shock valves and anti-cavitation valves . Additional , an internal check valve for limited manual steering is included . Several combinations of valves as well as different port sizes and different mounting threads are available.
Applications: tractors, combines, lift trucks, wheel loaders and other heavy vehicles.
Specifications:
| Port and Mounting Thread Combination | |||
| Port | Port mouting thread | Column mounting thread | Load sensing thread |
| M20X1.5 | M12X1.5 | M10X1.5 | M12X1.5 |
| M20X1.5 O-ring | M12X1.5 | M10X1.5 | M12X1.5 |
| G1/2 BSP | M12X1.5 | M10X1.5 | M12X1.5 |
| 3/4-16 O-ring | M12X1.5 | M10X1.5 | 7/16-20 O-ring |
| 9/16-18 Orring | M12X1.5 | M10X1.5 | 7/16-20 O-ring |
| Displacement cc/r | 50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 320 | 400 | 500 |
| Dlmenslon Dmm | 130 | 132 | 134 | 137 | 141 | 146 | 152 | 160 | 170 | 182 | 197 |
Competitive Advantage:Good Quality, Complete Series, Competitive price, Best Service.
