• 550S5106 / 550S5107 Hydraulic Steering Units with 60 Rpm, 16Mpa
550S5106 / 550S5107 Hydraulic Steering Units with 60 Rpm, 16Mpa

550S5106 / 550S5107 Hydraulic Steering Units with 60 Rpm, 16Mpa

Product Details:

Place of Origin: China
Brand Name: SJ HYD
Model Number: 400S, 550S, 510S, 531S

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Packaging Details: Carton or wooden box
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 Pcs per month
Get Best Price Contact Now

Detail Information

High Light:

hydraulic steering system

,

steering control units

,

hydraulic power unit

Product Description

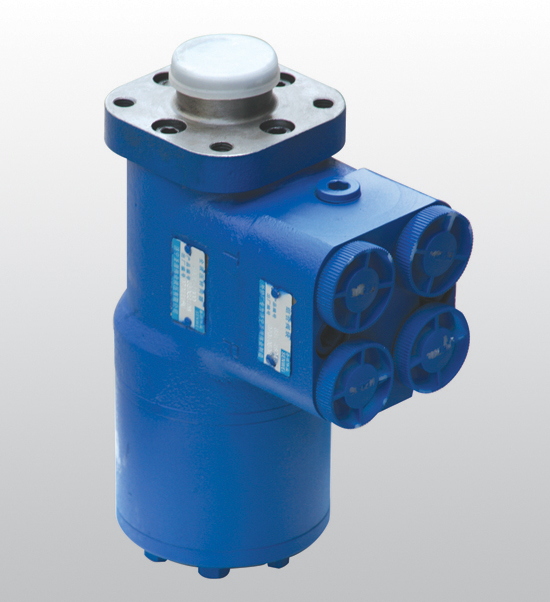

550S5106 / 550S5107 Hydraulic Steering Units with 60 Rpm, 16Mpa



Descrition:



550S Series of steering control units without integral valves except manual steering check and inlet plug-in check optional. Variety of optional features and functions available for different applications. 531S series are low input torque series based on 502S serise. Typical applications are tractors, combines, lift trucks, wheel loaders and other heavy vehicles.



Applications: tractors, combines, lift trucks, wheel loaders and other heavy vehicles.



Specifications:



Model Displacement Max.speed(rpm) Max.inlet pressure(Mpa) MaX.cont.back pressure Max. power steering torque (N*m)
550S5106 1000 60 16 1.6 ≤5
550S5107 1250



550S5106 / 550S5107 Hydraulic Steering Units with 60 Rpm, 16Mpa 0



Model Length
D(mm)
Thickness of Stator
H
550S5106 205 60
550S5107 215 75

Competitive Advantage:Good Quality, Complete Series, Competitive price, Best Service.
