• 2.5 - 3.5 Nm 502S Hydraulic Power Steering Units for Combines, Lift Trucks
2.5 - 3.5 Nm 502S Hydraulic Power Steering Units for Combines, Lift Trucks

2.5 - 3.5 Nm 502S Hydraulic Power Steering Units for Combines, Lift Trucks

Product Details:

Place of Origin: China
Brand Name: SJ HYD
Model Number: 400S, 550S, 510S, 531S

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Packaging Details: Carton or wooden box
Delivery Time: 20days
Payment Terms: T/T or L/C
Supply Ability: 100 Pcs per month
Get Best Price Contact Now

Detail Information

High Light:

hydraulic steering system

,

steering control units

,

hydraulic power unit

Product Description

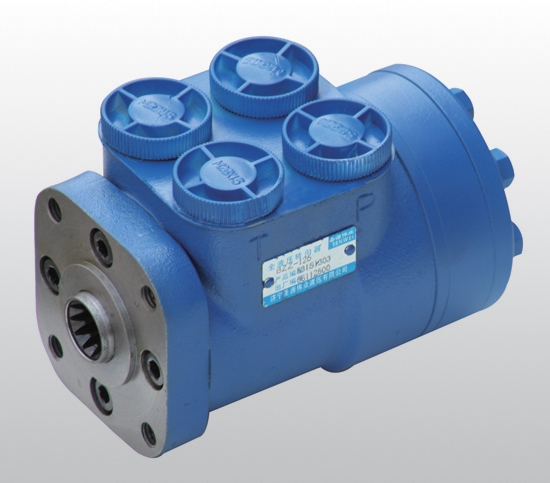

2.5 - 3.5 Nm 502S Hydraulic Power Steering Units for Combines, Lift Trucks



Descrition:



502S series of steering control units without integral valves except manual steering check and inlet plug-in check optional. Variety of optional features and functions available for different applications. 531S series are low input torque series based on 502S serise. Typical applications are tractors, combines, lift trucks, wheel loaders and other heavy vehicles.



Applications: tractors, combines, lift trucks, wheel loaders and other heavy vehicles.



Specifications:



Main specification
Model Displacement (ml/r) Flow(L/mln) Max.inlet pressure(Mpa) Max.cont back pressure(Mpa) Input torque(N*m) Weight(kg)
502S 50 4 16 2.5 2.5-3.5 4.08
502S 63 5 4.85
502S 80 6 5.05
502S 100 7.5 5.22
502S 125 9.5 5.70
502S 160 12 5.38
502S 200 15 6.03
502S 250 19 6.43
502S 320 24 7.07
502S 400 30 7.73
502S 500 38 8.62



Competitive Advantage:Good Quality, Complete Series, Competitive price, Best Service.
