200 L / min Pressure / Flow Control Hydraulic Piston Pumps HA10VSO DFLR
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ Hydraulic |
| Certification: | ISO9000 |
| Model Number: | A10VSO140 DFLR/31R-PSD62N00 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Packaging Details: | Carton |
| Delivery Time: | 15days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Model: | A10VSO140 DFLR/31R-PSD62N00 | Pressure: | High Pressure |
|---|---|---|---|
| Place Of Origin: | China | Certification: | ISO9001 |
| Warranty: | One Year | ||
| High Light: | small piston pump,single piston pump,axial piston pump |
||
Product Description

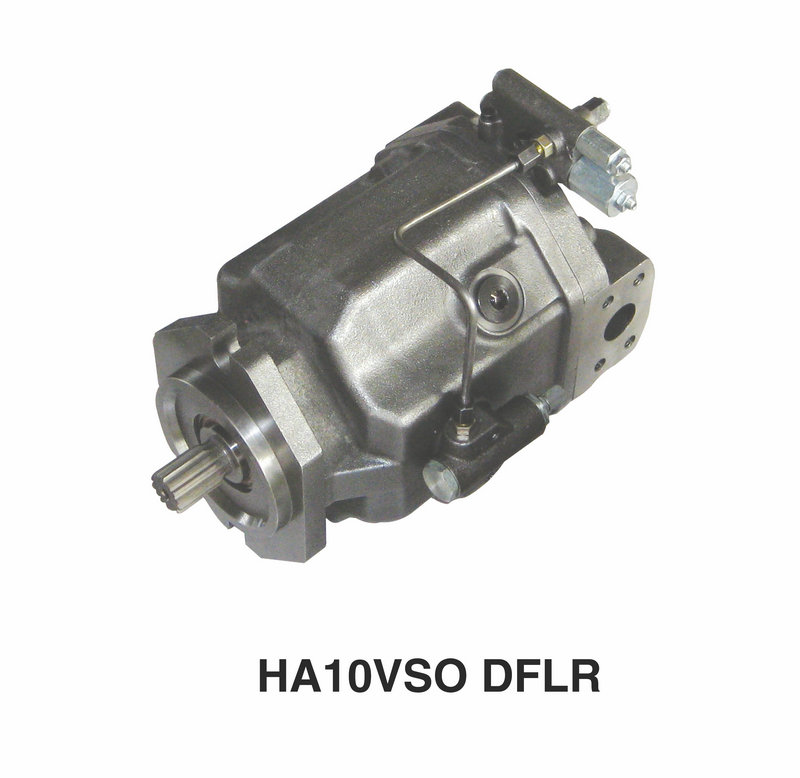

200 L / min Pressure / Flow Control Hydraulic Piston Pumps HA10VSO DFLR
Descrition:
Axial piston pump, displacement is 100cc.
Pressure, Flow, torque control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Side port type, single pump
Application:
Hydraulic System, Engineering machine, Concrete pump truck, Boats hydraulic system. Excavator, Loader
Competitive Advantage:
Good quality, Competitive price, Quick delivery, good service.
Low noise and small volume
|
Sizes |
|
|
|
16/18 |
28 |
45 |
71 |
100 |
140 |
|
Displacement |
|
Vg max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
|
Max speed |
|
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
|
Max. flow |
in nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
|
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
|
(Δp=280bar) Max. power |
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
118 |
|
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
|
Max. torque (Δp=280bar)
|
in Vg max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
|
Weight |
|
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
