• Hydraulic Double Drum Compactor Road Roller Cast Iron / Steel Material 600kg
Hydraulic Double Drum Compactor Road Roller Cast Iron / Steel Material 600kg

Hydraulic Double Drum Compactor Road Roller Cast Iron / Steel Material 600kg

Product Details:

Place of Origin: CHINA
Brand Name: SJ HYDRAULIC
Certification: ISO9001
Model Number: SJ-550d

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1
Packaging Details: standard package
Delivery Time: 10-15 days
Payment Terms: L/C, T/T
Supply Ability: 1000 set per month
Get Best Price Contact Now

Detail Information

Material: Cast Iron And Steel Specification: Many Types
Type: Double Drum Power: Hydraulic
Grade Ability: 30% Warranty Period: One Year
Condition: New
High Light:

mini road roller

,

mini excavation equipment

Product Description

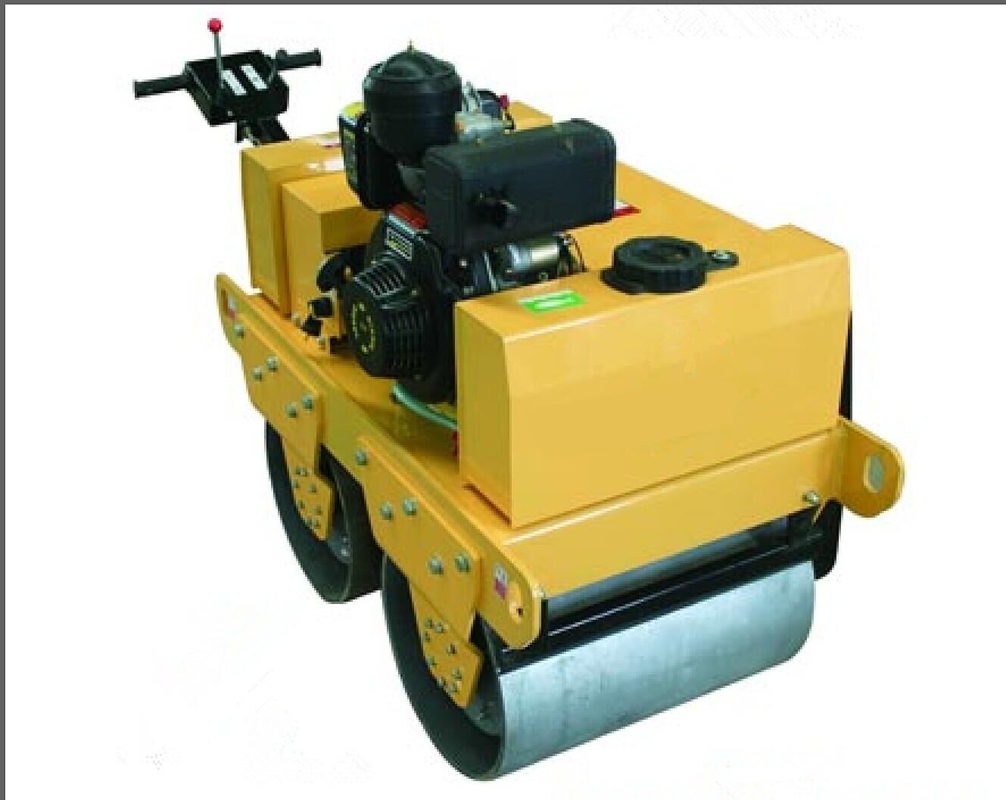

SJ-550d Hydraulic Double Drum Road Roller Small operating radius



Introduction:



For compaction of asphalt surface, compaction of gravel, sand, ground and other projects.



Applications:

Small Road Roller

Used for compaction of asphalt surface, com Hand Double Drum Vibration Roller,Mini Vibration Roller paction of gravel, sand and other projects.

The vibratory road roller is small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn.They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.



Features:

Small Road Roller

1).Operating radius is small, can work in a small area;
2).HONDA Petrol engine or famous diesel engine,superior performance, easy to start;

3).With international famous brand SJ HYD drive unit,walking froward and backward,

reversing convenient.

4).With international famnous NSK bearing,misuboshi v-belt,ensure the excellent performance of the machine.

5).Deisel power with electric startup,light and flexible.

6).Infinitely variable speed,double drums vibrating,the gradeability stays the same when oil temperature is higher.

7).Operating radius is small,can work in narrow place.
8)Diesel engine with electric start,strong power and stable property.
9)Double drive double vibrate,achieve the compaction and climbing capacity.
10)The direction is controlled by the hydraulic,light and flexible.



Specification:



MODEL YHM-550d
WALK ENGINE
Speed(km/h) 0-3 Model CF178F
Climbing capacity(%) 30 Type Diesel
COMPACTION Power(KW(ps)/rpm) 4.0(5.4)/3600
Static linear load(N/cm) 45 Fuel oil tank(L) 3.5
Nominal amplitude(mm) 0.5 SIZE
Vibration frequency(Hz) 70 Drum width(mm) 600
Exciting force(kN) 20 Drum diameter(mm) 425
Water tank(L) 22 Length(mm) 1410
Hydraulic oil tank(L) 22 Width(mm) 750
    Height(mm) 1800
WORK Package size(mm) 1400*1000*1200
Drive Hydraulic station WEIGHT
Vibration control Automatic clutch Net weight(kg) 550
Gross weight(kg) 600
