ISO Tandem Road Roller Machine Weight 1.5t Diesel Engine One Year Warranty 1.3-1.5ton
Product Details:
Place of Origin: | CHINA |
Brand Name: | SJ HYDRAULIC |
Certification: | ISO 9001 |
Model Number: | SJ-01 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | USD 1 |
Packaging Details: | standard package |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1000 set per month |
Detail Information |
|||
Material: | Cast Iron Steel | Specification: | Many Types |
---|---|---|---|
Type: | Double Drum | Power(hp/rpm): | 8.0/3600 |
Grade Ability: | 30% | Warranty Period: | One Year |
High Light: | mini road roller,mini excavation equipment |
Product Description

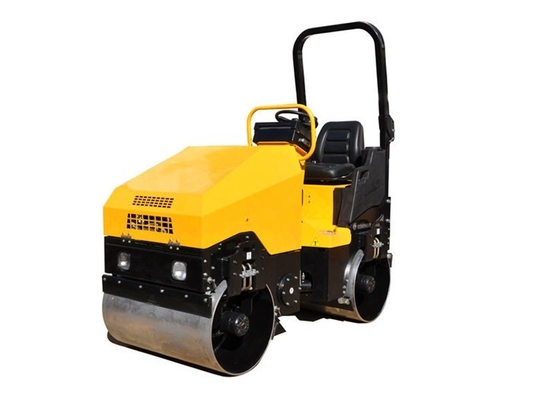

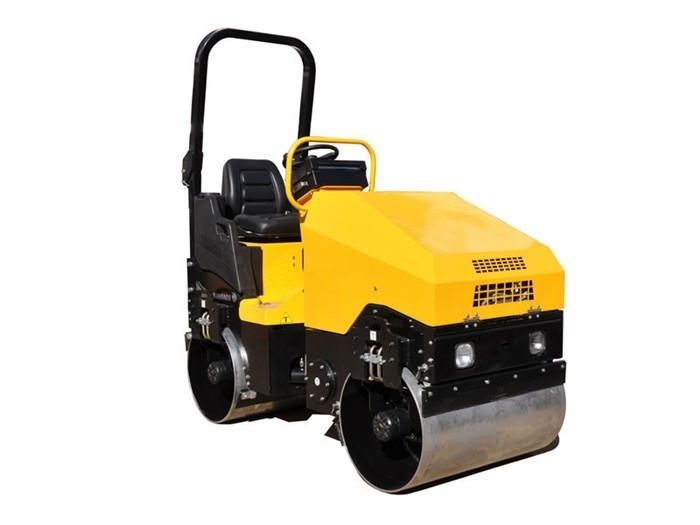

SJ-01 Ride On Tandem Road Roller
Introductions:
For compaction of the foundation project such as asphalt surface,gravel and sand, for compaction the lawn and ground etc.
Applications:
Small Road Roller
Used for compaction of asphalt surface, com Hand Double Drum Vibration Roller,Mini Vibration Roller paction of gravel, sand and other projects.
The vibratory road roller is small-size vibratory roller, applied to mending and maintaining various roads, expressway shoulder, roadside walk, parking area, sports ground and garden lawn.They are especially suitable for compaction of narrow areas as pipeline channel and drainage trench etc.
Features:
Small Road Roller
1).Operating radius is small, can work in a small area;
2).HONDA Petrol engine or famous diesel engine,superior performance, easy to start;
3).With international famous brand hydraulic drive unit,walking froward and backward,
reversing convenient.
4).With international famnous bearing,misuboshi v-belt,ensure the excellent performance of the machine.
5).Deisel power with electric startup,light and flexible.
6).Infinitely variable speed,double drums vibrating,the gradeability stays the same when oil temperature is higher.
China top brand diesel engine, International brand variable plunger pump drives the machine stepless speed speed walking.
Double American brand cycloid hydraulic motors drive the machine walking.
Electromagnetic clutch, integrated control lever, easy to operate.
Extra-large water tank reduces the frequency of water refilling. Water-spraying electrically controlled, user-friendly.
LED lamp at front and rear for the convenience of night construction. Foldable Roller Over Protection System. Built-in drive motor, good compaction along the edge.
Walk | |||
Power | 20hp/3600rpm | Speed | 0-8km/h |
Fuel tank capacity | 30L | Steering radius | 1900mm |
Lubricant L | 1.8L | Climbing capacity in theory | 30% |
Fuel consumption | 313g/kWh | Compaction | |
Dimensions | Static load forward/back | 70/75N/cm | |
Width of steel drum | 900mm | Nominal amplitude | 0.5mm |
Diameter of steel drum | 560mm | Vibration frequency | 65Hz |
Tread | 1340mm | Exciting force | 22kN |
Total length | 2270mm | Water tank capacity | 150L |
Total width | 980mm | Engine | |
Total height | 2250mm | Model | |
Package Size | 2460x1140x1700mm | Type | Gasoline engine,aircooled, double cylinder |
Weight | |||
Working weight | 1480kg |
