BM1 Danfoss/Eaton replacement High Pressure Hydraulic Orbit Motor BM1 for 50 / 100 / 200 / 400 ml/r
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Certification: | ISO9000 |
| Model Number: | BM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Packaging Details: | Carton or wooden box |
| Delivery Time: | Ten days after you confirm the order |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Brand: | SJ HYD | Material: | Cast Iron |
|---|---|---|---|
| Pressure: | 10-16.5 | Flow: | 45-75 |
| Speed: | 149-975 | Torque: | 81-533 |
| Type: | Hydraulic Motors | Place Of Origin: | China |
| Certification: | ISO9001 | Motor Shafts: | Straight, Splined And Tapered |
| Motor Power: | Hydraulic Oil | Structural Style: | Cycloid |
| Processing: | Forging & Cutting | Application: | Construction Machine And Agricultural Machine |
| Flange: | Square And Rhombus Flange | Package: | Standard Package |
| Color: | As Requests | Warranty: | One Year |
| High Light: | spool valve motor,geroler motor,high efficiency motor |
||
Product Description

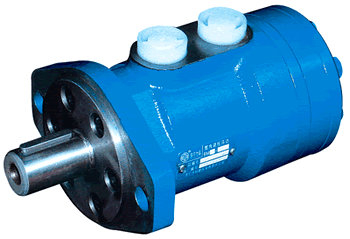

High Pressure Hydraulic Orbit Motor BM1 for 50 / 100 / 200 / 400 ml/r
Descrition:
Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility
Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications
Applications: Hydraulic system, engineering machine, industry machine
Specifications:
|
Displacement |
50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | |
|
Flow |
Cont. | 45 | 45 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
| Int.. | 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
|
Speed |
Cont. | 879 | 720 | 740 | 589 | 475 | 370 | 296 | 237 | 189 | 149 |
| Int.. | 975 | 755 | 827 | 673 | 594 | 463 | 370 | 297 | 236 | 185 | |
|
Pressure |
Cont. | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 12.5 | 11 | 11 | 11 | 10 |
| Int.. | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 | 14 | 12.5 | 10.5 | |
|
Torque |
Cont. | 81 | 101 | 129 | 161 | 202 | 245 | 286 | 360 | 406 | 435 |
| Int.. | 108 | 134 | 171 | 213 | 168 | 342 | 390 | 456 | 505 | 533 | |
Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
