• BM5 Danfoss/Eaton replacement 250 / 280 / 500 ml/r Industrial / Engineering Geroler Hydraulic Orbit Motor BM5
BM5 Danfoss/Eaton replacement 250 / 280 / 500 ml/r Industrial / Engineering Geroler Hydraulic Orbit Motor BM5

BM5 Danfoss/Eaton replacement 250 / 280 / 500 ml/r Industrial / Engineering Geroler Hydraulic Orbit Motor BM5

Product Details:

Place of Origin: China
Brand Name: SJ HYD
Certification: ISO9000
Model Number: BM5

Payment & Shipping Terms:

Minimum Order Quantity: 5 PCS
Packaging Details: Carton or wooden box
Delivery Time: Ten days after you confirm the order
Payment Terms: T/T or L/C
Supply Ability: 1000 pcs per month
Get Best Price Contact Now

Detail Information

Brand: SJ HYD Material: Cast Iron
Color: As Requets Condition: New
Warranty: One Year Type: Orbit Motor
Place Of Origin: China Certification: ISO9001
Motor Shafts: Straight, Splined And Tapered Power: Hydraulic Oil
Structural Style: Cycloid Processing: Foring & Cutting
Application: Engineering Mahinery And Agricultural Machinery Motor Flange: Square And Rhombus Flange
Package: Standard Package
High Light:

spool valve motor

,

geroler motor

,

high efficiency motor

Product Description

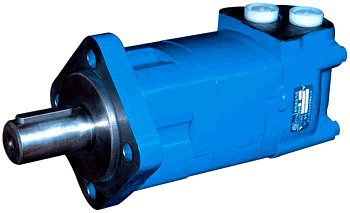

250 / 280 / 500 ml/r Industrial / Engineering Geroler Hydraulic Orbit Motor BM5



Applications: Hydraulic system, engineering machine, industry machine



Descrition:



Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility

Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications



Specifications:



Displacement(ml/r) 80 100 125 160 200 250 280 305 400 500
Flow(LPM) Cont. 75 75 75 75 75 75 75 75 75 75
Int.. 85 95 95 115 115 115 115 115 130 130
Speed(RPM) Cont. 850 675 552 430 345 276 246 226 180 144
Int.. 956 855 700 660 529 423 378 347 308 246
Pressure(Mpa) Cont. 17.5 17.5 17.5 17.5 17.5 17.5 17.5 15 15 12
Int.. 28 28 28 25 25 25 25 21 17.5 15
Torque(N*m) Cont. 178 223 278 356 445 557 592 580 715 720
Int.. 285 356 445 509 636 755 779 763 840 860

Note:

1.Continuous data:The Max.Value of operating motor continuously.

2.Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.

3.A simultaneous max. RPM and max. Pressure is not recommended.

4.The Conversion Factors is on the page 4, consult it please

5.Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.



Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
