BM1 Series Danfoss/Eaton replacement Small Size Spool Valve Motor Iron / Steel High Power Low Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Certification: | ISO9001 |
| Model Number: | BM1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 1 USD |
| Packaging Details: | Standard Package |
| Delivery Time: | 15 days after received the payment |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000 set per month |
|
Detail Information |
|||
| Material: | Iron And Steel | Specification: | 50-400 |
|---|---|---|---|
| Flow: | 50-75 | Speed: | 185-975 |
| Pressure: | 105-16.5 | Torque: | 108-533 |
| Type: | Hydraulic Motors | Place Of Origin: | China |
| Certification: | ISO9001 | Motor Shafts: | Straight, Splined And Tapered |
| Motor Power: | Hydraulic Oil | Structural Style: | Cycloid |
| Processing: | Forging&cutting | Application: | Construction Machine And Agricultural Machine |
| Motor Flange: | Square And Rhombus Flange | Package: | Standard Package |
| Warranty: | One Year | ||
| High Light: | spool valve motor,geroler motor |
||
Product Description

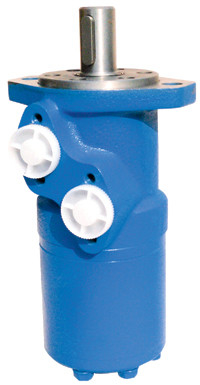

BM1 motor
BM1 series motor is a small volume, spool valve,economical type motor. Characteristic features:
Compact design of spool and gear set, which provide small volume, high power and low weight..
Credible design for shaft seal , which can bear high pressure and be used in parallel or in series.
Direction of shaft rotation and speed can be controlled easily and smoothly.
Best combination of efficiency and economy in medium load applications.
Main Specification
Displacement: 50ml/r, 63ml/r, 80ml/r, 100ml/r, 125ml/r, 160ml/r, 200ml/r, 250ml/r, 315ml/r, 400ml/r
Flow:
1.Cont.: 45LPM, 45LPM, 60LPM, 60LPM, 60LPM, 60LPM, 60LPM, 60LPM, 60LPM, 60LPM
2.Int.: 50LPM, 50LPM, 75LPM, 75LPM, 75LPM, 75LPM, 75LPM, 75LPM, 75LPM, 75LPM
Speed:
1.Cont.: 879RPM,720RPM,740RPM,589RPM,475RPM,370RPM,296RMP,237RPM,189RPM,149RPM
2.Int.: 975RPM,755RPM,827RPM,673RPM,594RPM,463RPM,370RMP,297RPM,236RPM,185RPM
Pressure:
1.Cont.: 12.5MPa,12.5MPa,12.5MPa,12.5MPa,12.5MPa,12.5MPa,11MPa,11MPa,10MPa,8.5MPa
2.Int.: 16.5MPa,16.5MPa,16.5MPa,16.5MPa,16.5MPa,16.5MPa,16.5MPa,14MPa,12.5MPa,10.5MPa
Torque:
1.Cont.: 81N*M,101N*M,129N*M,161N*M,202N*M,245N*M,286N*M,360N*M,406N*M,435N*M
2.Int.: 108N*M,134N*M,171N*M,213N*M,268N*M,342N*M,390N*M,456N*M,505N*M,533N*M
Note: 1.Continuous data: The Max. Value of operating motor continuously. 2.Intermittent Data: The Max. Value of operating motor in 6 seconds per minute. 3.A simultaneous max. RPM and max. pressure is not recommended.
4.The Conversion Factors is on the page 4, consult it please
5.Optimum operating situation should be at the 1/3～2/3 of the continuous operating situation.
Characteristics:
1.Compact valve shaft and integral rotor design, small size, large power density.
2.Reliable design of shaft seal under high back pressure, can be used in parallel.
3.Positive and negative conversion to the convenient, stable speed.
4.The best efficiency and economic performance, suitable for medium load.
Competitive: Good quality, complete series, competitive price, best service, long warranty period.
Applications: Tractor and other agricultural machine.
