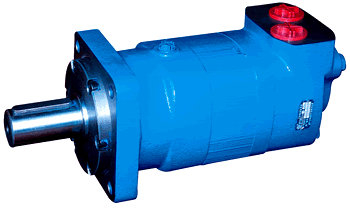

BM6 Danfoss/Eaton replacement High Pressure Spool Valve Hydraulic Orbit Geroler Motor BM6 for Machinery
Product Details:
| Place of Origin: | China |
| Brand Name: | SJ HYD |
| Certification: | ISO9000 |
| Model Number: | BM6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 PCS |
|---|---|
| Packaging Details: | Carton or wooden box |
| Delivery Time: | Ten days after you confirm the order |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Brand: | SJ Hydraulic | Material: | Cast Iron |
|---|---|---|---|
| Type: | Hydraulic Orbital Motor | Original Place: | China |
| Color: | As Requests | Model: | BM6 |
| Certification: | ISO9001 | Motor Shafts: | Straight, Splined And Tapered |
| Power: | Hydraulic Oil | Structural Style: | Cycloid |
| Processing: | Forging & Cutting | Motor Application: | Construction Machinery And Agricultural Machinery |
| Motor Flange: | Square And Rhombus Flange | Package: | Standard Package |
| Warranty: | One Year | ||
| High Light: | spool valve motor,geroler motor,high efficiency motor |
||
Product Description
High Pressure Spool Valve Hydraulic Orbit Geroler Motor BM6 for Machinery
Specifications:
| Displacement(ml/r) | 195 | 245 | 310 | 395 | 490 | 625 | 800 | 985 | |
| Flow(LPM) | Cont. | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
| Int.. | 170 | 210 | 225 | 225 | 225 | 225 | 225 | 225 | |
| Speed(RPM) | Cont. | 775 | 615 | 485 | 383 | 307 | 241 | 184 | 153 |
| Int.. | 866 | 834 | 698 | 563 | 454 | 355 | 276 | 230 | |
| Pressure(Mpa) | Cont. | 20.5 | 20.5 | 20.5 | 20.5 | 17 | 14 | 12 | 12 |
| Int.. | 31 | 31 | 31 | 31 | 27.5 | 17 | 14 | 14 | |
| Torque(N*m) | Cont. | 575 | 735 | 930 | 1169 | 1215 | 1330 | 1380 | 1570 |
| Int.. | 860 | 1180 | 1335 | 1655 | 1885 | 1380 | 1650 | 1875 | |
Note:
1.Continuous data:The Max.Value of operating motor continuously.
2.Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.
3.A simultaneous max. RPM and max. Pressure is not recommended.
4.The Conversion Factors is on the page 4, consult it please
5.Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.
Descrition:
Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility
Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of efficiency and economy in medium duty applications
Applications: Hydraulic system, engineering machine, industry machine
Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
