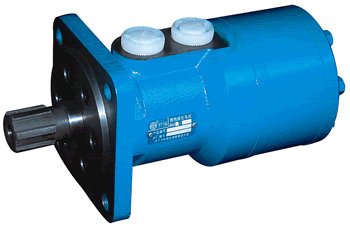

BM2 Danfoss/Eaton replacement Cont. 40 / 60, Int. 50 / 75 High Efficiency Spool Valve Hydraulic Orbit Motor BM2
Product Details:
Place of Origin: | China |
Brand Name: | SJ HYD |
Certification: | ISO9000 |
Model Number: | BM2 Series |
Payment & Shipping Terms:
Minimum Order Quantity: | 5 PCS |
---|---|
Packaging Details: | Carton or wooden box |
Delivery Time: | Ten days after you confirm the order |
Payment Terms: | T/T or L/C |
Supply Ability: | 1000 pcs per month |
Detail Information |
|||
Model: | BM2 | Brand: | SJ Hydraulic |
---|---|---|---|
Material: | Cast Iron | Certification: | ISO 9001 |
Place Of Origin: | China | Motor Shafts: | Straight, Splined And Tapered |
Power: | Hydraulic Oil | Flange: | Square And Rhombus Flange |
Package: | Standard Package | Application: | Construction Machinery And Agricultural Machinery |
Processing: | Forging&cutting | Structural Style: | Cycloid |
High Light: | spool valve motor,geroler motor,high efficiency motor |
Product Description
Cont. 40 / 60, Int. 50 / 75 High Efficiency Spool Valve Hydraulic Orbit Motor BM2
Applications: Hydraulic system, engineering machine, industry machine
Descrition:
Compact in design with spool valving and Geroler
Imported high pressure capacity shaft seal
Wide variety of mounting flanges, shafts, ports
and speed provides design flexibility
Direction of shaft rotation and speed can be controlled easily and smoothly
Best combination of c and economy in medium duty applications
Specifications:
Displacement (ml/r) |
50 | 63 | 80 | 100 | 125 | 160 | 200 | 250 | 315 | 400 | 500 | |
Flow (LPM) |
Cont. | 40 | 40 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 |
Int.. | 50 | 50 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | |
Speed (RPM) |
Cont. | 755 | 630 | 750 | 600 | 475 | 375 | 300 | 240 | 190 | 160 | 110 |
Int.. | 970 | 790 | 940 | 750 | 600 | 470 | 375 | 300 | 240 | 200 | 128 | |
Pressure (Mpa) |
Cont. | 14 | 14 | 17.5 | 17.5 | 17.5 | 16.5 | 13 | 11 | 8.5 | 8.5 | 8 |
Int.. | 17.5 | 17.5 | 20 | 20 | 20 | 20 | 17.5 | 14 | 11.5 | 11.5 | 9 | |
Torque (N*m) |
Cont. | 100 | 124 | 190 | 240 | 292 | 363 | 358 | 352 | 360 | 420 | 464 |
Int.. | 126 | 156 | 220 | 280 | 340 | 430 | 448 | 470 | 470 | 548 | 580 |
Note:
1.Continuous data:The Max.Value of operating motor continuously.
2.Intermittent Data:The Max.Value of operating motor in 6 seconds per minute.
3.A simultaneous max. RPM and max. Pressure is not recommended.
4.The Conversion Factors is on the page 4, consult it please
5.Optimum operating situation should be at the 1/3 ~ 2/3 of the continuous operating situation.
Competitive Advantage: Good quality, Complete Series, Competitive price and Best service.
